Hatch Lift Experience

[ Main H-Body Page ]


May, 2016 - All of my H-Bodies needed something better than a broom handle to prop them open. My first thought, for some reason, was ebay.  I found a set of set listed as new and bought them. They arrived as promised, were shrunk wrapped on cardboard stock in a packaging style that screamed 1980, as if they were just found at a parts store. But when I installed them, they were as shot as the pair I had just taken off.

Bummed out, I contacted the seller who promptly gave me a refund and told me that back in the day, he was a sales rep for the now defunct Motormite Mfg. who made these "Mighty Lift™ Gas Filled Lift Supports." He said that they were long out of business so finding replacements might be a challenge.

Undaunted, I switched gears and started searching on Amazon. I found a couple of options there. One set had the electrical tabs I needed for the Mirage's rear window defroster, and the other set did not which was perfect for the 2+2. Both sets arrived within a couple of days.

The "Tuff Support" set I installed on the 2+2 went on without incident and worked perfectly. Based on this, I would recommend.

The "Strong Arm" set for the Mirage installed fine, but the hatch would not close! I tried with more force than I was comfortable, could see the stress being created on the hatch hinges, with and then removed them. Visually inspecting them, they looked defect free. I then tried to push them closed against some carpeting on the concrete garage floor, and the first one broke free and worked. The other was like it was welded fully extended!

I installed the one (and it was strong enough to hold the hatch up), contacted Amazon, the sent out a replacement and picked up the bad one. Two days later, the replacement arrived. I opened the plastic bag it was sealed in and could see surface rust on the chrome rod. Closer inspection around the seal, I could see what looked like old, dry, black grease.  I tried to push the piston and it was frozen open too! Initiated another return and replace process with Amazon. Third time was the charm!

The table below are all of the hatch lift supports that I know work on the H-Bodies (Disclaimer: I have no experience with Vega hatches so no clue if these are interchangeable.)

Part Number Brand Name Manufacturer Source Price Each

Notes

612009 Tuff Support Inseco Inc.
New York, NY 10018
Made in Turkey
Amazon
[Click the link]
$17.49 For hatches with spoilers, no defroster.
4411 Strong Arm
[ PDF of the Instructions ]
AVM Industries
PO Box 729, Marion, NC 29571
avmind.com
Made in U.S.A.
Amazon $17.42 For hatches with spoilers and defroster.
Amazon says made in China but the box said U.S.A. Check them out carefully upon receipt. They seem to be prone to DOA.
95068 Mighty Lift!™ Motormite® Mfg.
2695 Philmont Ave., Huntingdon Valley, PA 19006
Made in U.S.A.
ebay $17.48 NOS vintage 1984. Not functional.

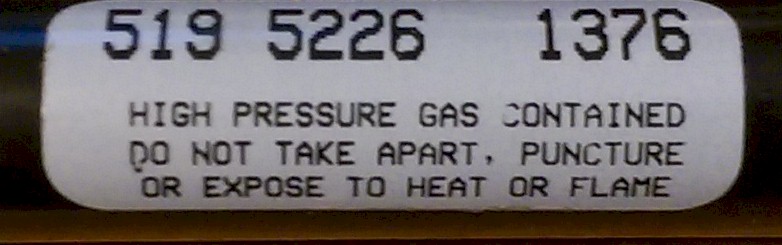

519 5226   1376 Unknown Unknown One of the bad lifts I replaced on the Mirage.
SG330006 Stabilus Sachs Amazon $15.56 These are listed as compatible but the noted overall length is wrong. I have not tried this model.
20274474 General Motors Parts Division General Motors - - These are the original, stock parts. No longer being manufactured. From time to time NOS shows up for sale. Beware. From experience, they have a shelf life!
901250 Max-Lift® Monroe - - Appear to be discontinued.

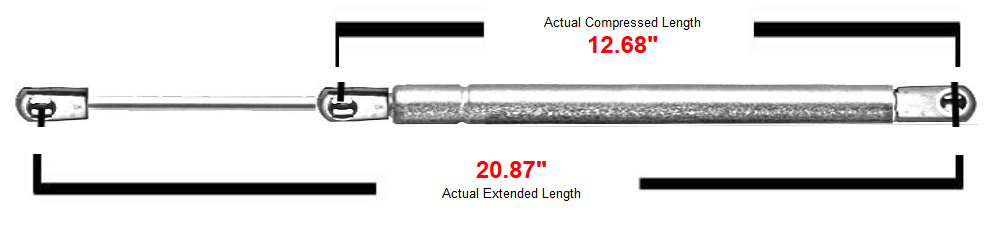

Regardless of the brand, these are the measurements you are looking for.
